CNC Plasma Cutting Machine




CNC Plasma Cutting Machine

Plasma cutting machines are widely used in the sheet metal processing industry. Through system control, they can cut the sheets without shape.It is also an indispensable machine for the ventilation pipeline production industry.

1.Main features:


The machine is desktop gantry structure with double-side drive. X & Y axes track are precise cylindrical linear guide rails, precise gear and rack drive, runs stably.

Machine frame adopts the whole welding and annealing treatment, main frame is made by medium-sized steel pipe through welding; rail base plates are made through the planer precision processing, high strength, good precision and no deformation.

Crossbeam, side panels and all movable parts are made by aluminum alloy through fine casing and milling, with features of high strength and small inertia, ensuring the high strength and avoiding the cutting positioning instability caused by high inertia.

Adopting HP105 portable arc-pressure height regulator which can automatically regulates the height between cutter and plate to ensure the cutting quality. Scientific structure can effectively avoid collision between cutting head and steel plates owning to reaction rate cannot matches with that of cutting head.

Specimen closed environmental bottom groove and dust treatment system timely discharge dust and provides a healthy working environment for workers.

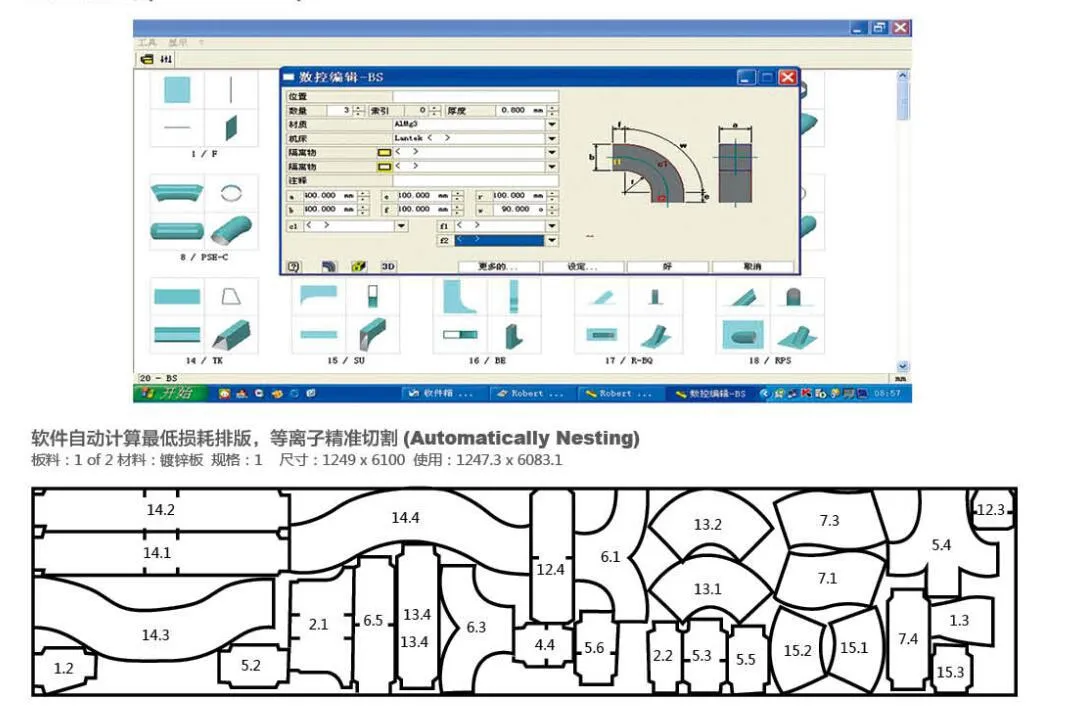

2.CNC Programme PLC controller screen:

Cnc Plasma Cutting Machine


3.After-sales Service

  1. The whole machine we offer two years guarantee time free, without consumable parts replacement and man-made fault . User-friendly English manual and video CD for machine using and maintaining.

My company English software can do all kinds of pattern recognition, software upgrading and updating free

You are the one we CARE ABOUT! We always offer you our best service no matter when and where.

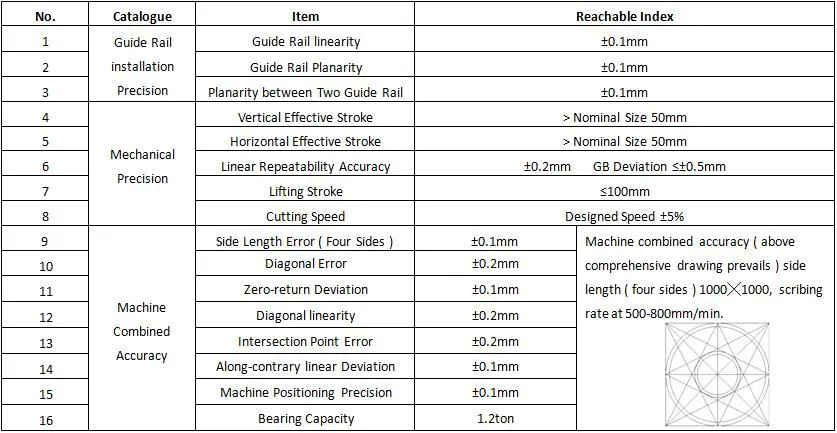

4.Mechanical Precision:

Cnc Plasma Cutting Machine

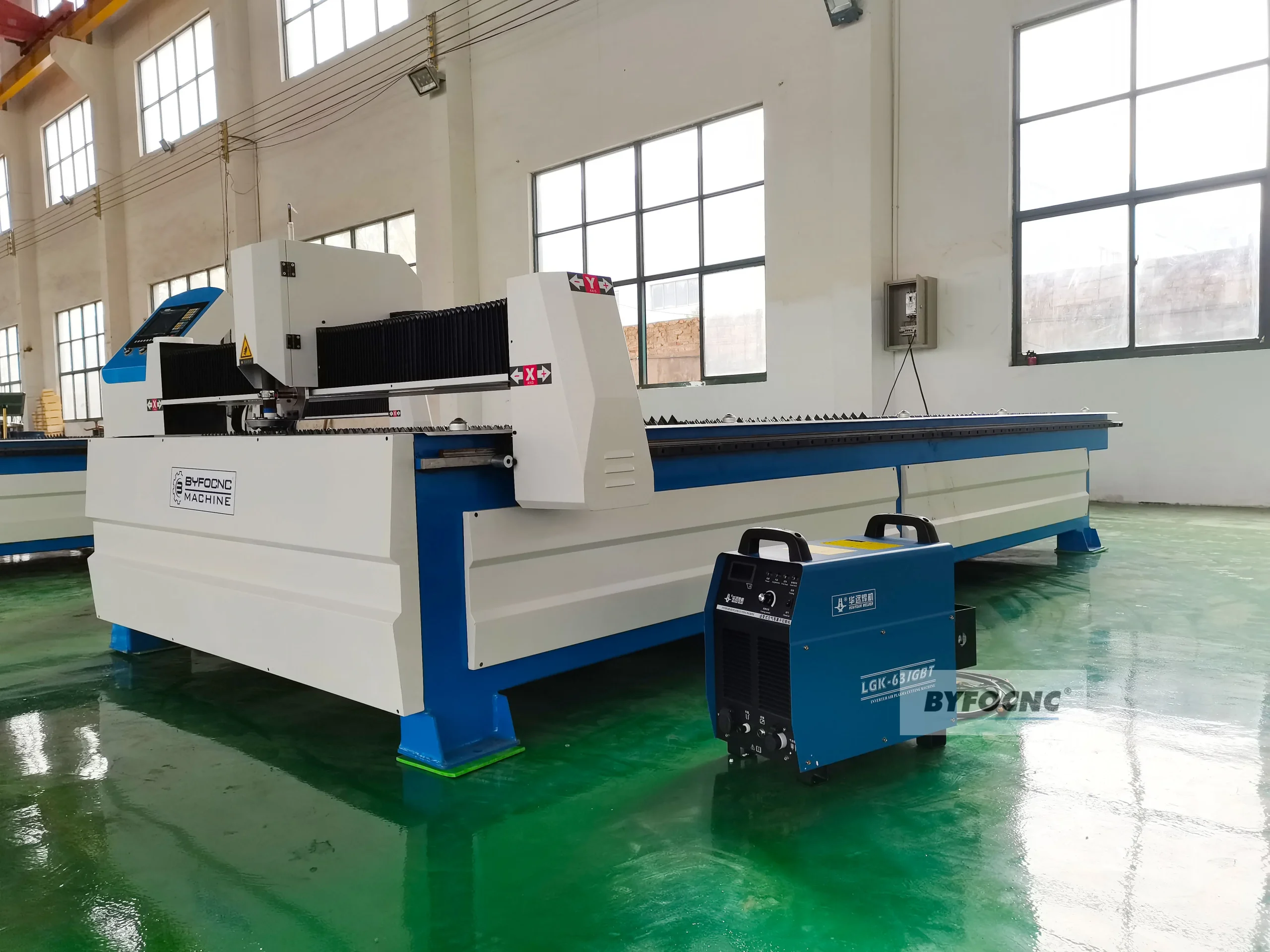

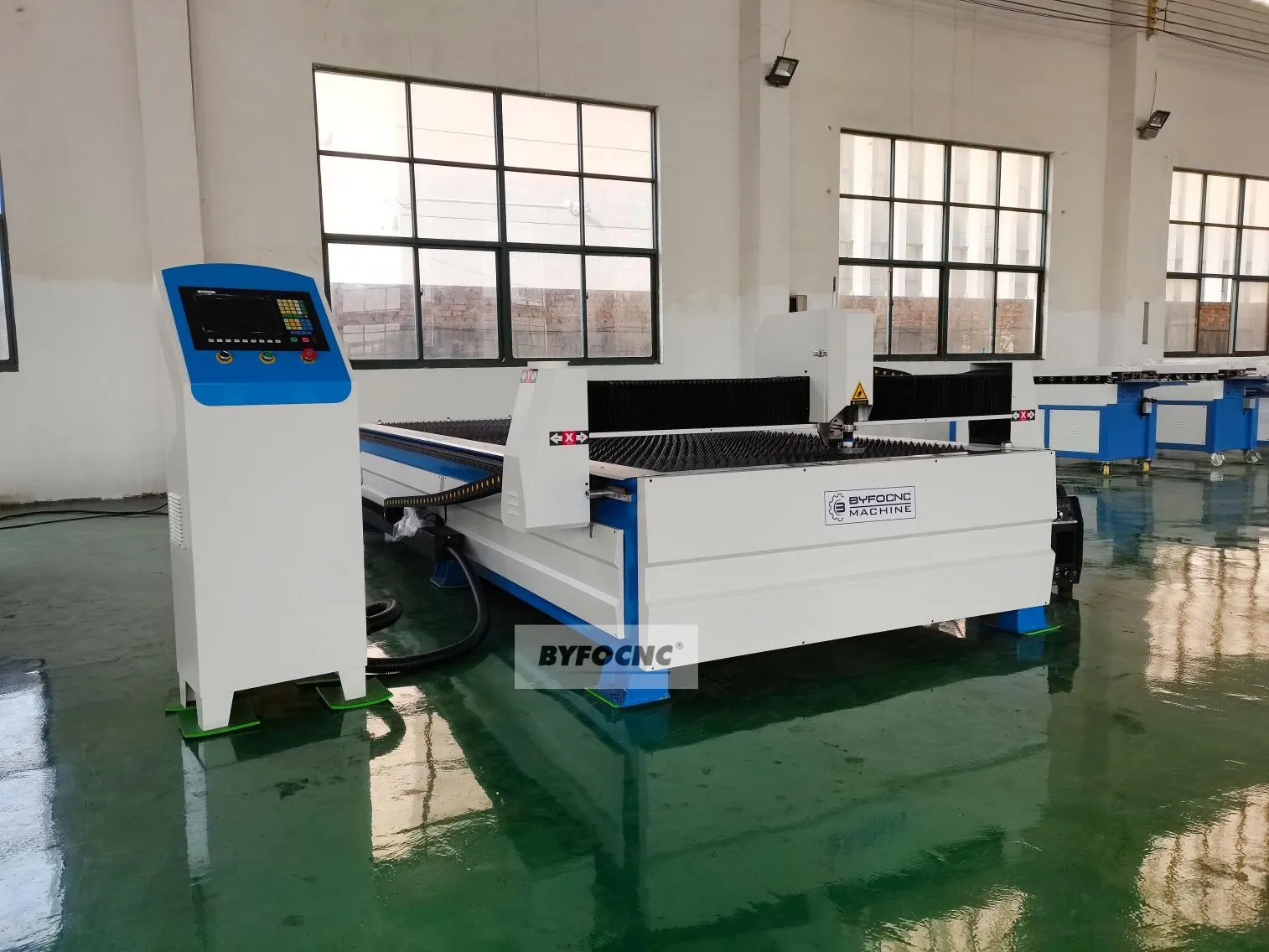

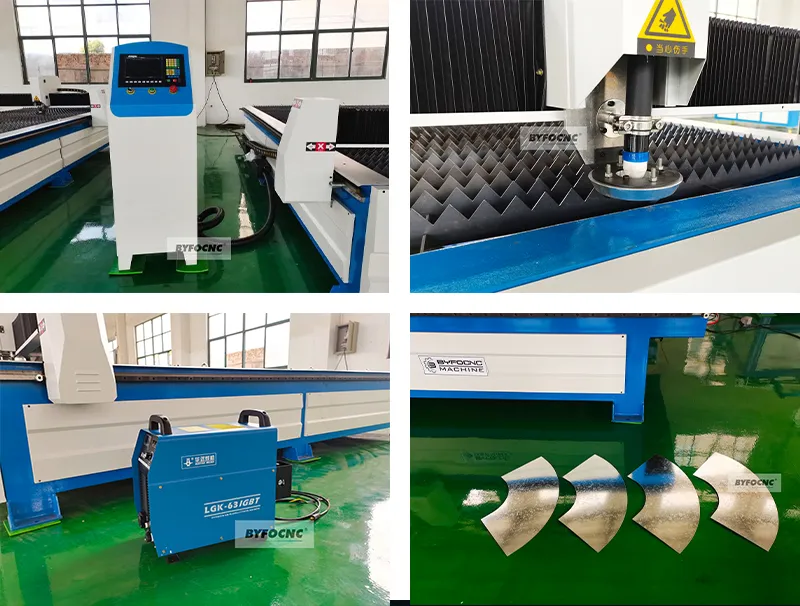

5.Real photos

Cnc Plasma Cutting Machine


Cnc Plasma Cutting Machine


Cnc Plasma Cutting Machine
