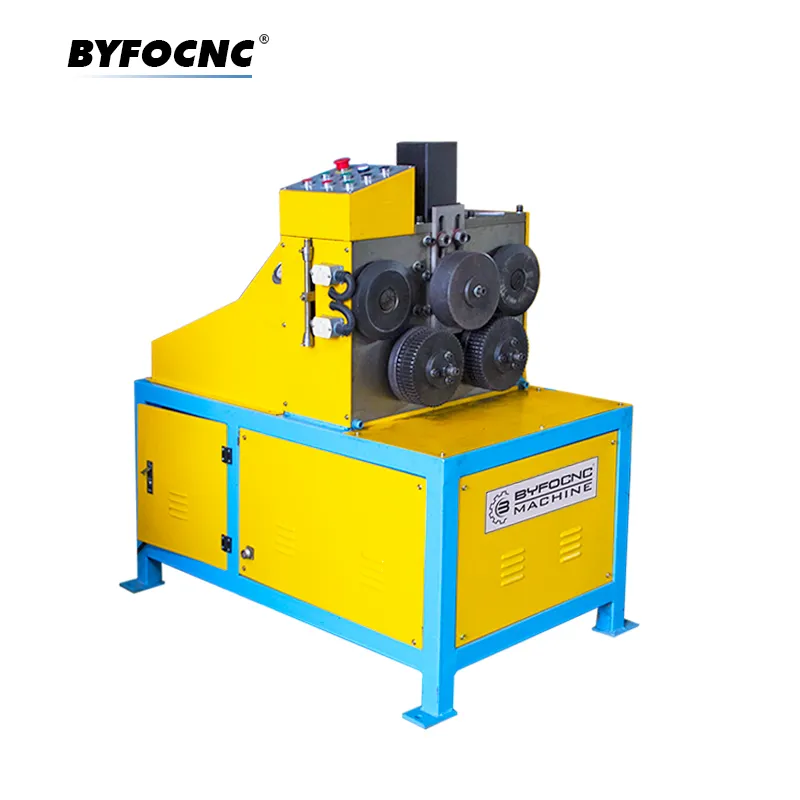

YJ series hydraulic section roll bending machine is a kind of high efficiency equipment which is special used to bending various kinds of profiled steel, such as angle steel, channel bar, I-steel, flat steel, square & round steel, round pipe and so on.
It is widely used in the HVAC duct manufacture field, hydropower, boat building and chemical industry.
The two bottom rollers are fixed as main transmission rollers, the upper roller can be moved up and down. There are two supporting rollers on both sides to ensure good quality of rolled profiles.
|3||Down roller speed||100mm/ min|
|4||Up axis diameter||120 mm|
|5||Down axis diameter||115mm|
|6||Mold diameter||265 mm|
|Angle , outer bending||Max.section size||75x6mm|
|Plate, flat bending||Max. Section size||100x4mm|
|Round pipe,Tube||Max. Section size||60x4mm|
|Rod bending||Max. Section size||52mm|
|Square pipe||Max. Section size||60x4mm|

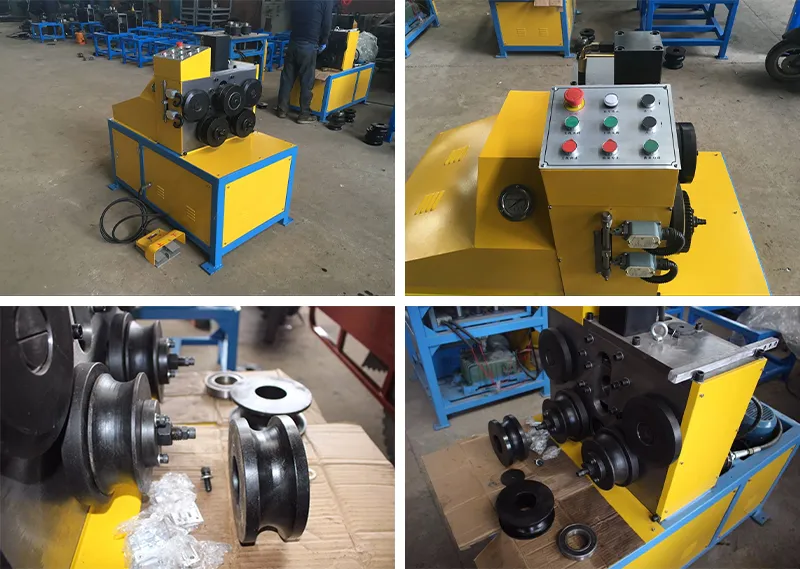

Machine physical picture
