S Lock Former

Introduction:

• BYFOCNC S lock former is mainly suitable for the production of HVAC air ducts,  air conditioning, purification, and other devices. According to the different requirements, the S lock former can make a C S flange square air duct. It is indispensable equipment for making various sheet metal air ducts.
• S lock former can make different 5 kinds of hems. (S hem, elbow hem, c cleat hem, Pittsburgh hem, standing hem)
• The whole machine has 8 sets of rollers. The rollers are made of 40CR material, All the rollers are bearing steel with heat treatment and quenching.
• S lock former is a multifunctional machine, mainly used for sheet metal connection and sewing bite.
• S lock former is a special equipment for producing all kinds of rectangular ventilation duct lines.
• Slock former is a processing machine used for plug-in (no flange) connection of rectangular air ducts.

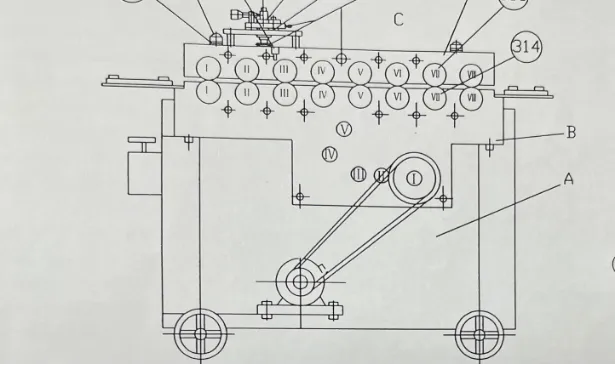

• S lock former is mainly composed of a frame, lower roller, and upper roller.
• The S locks the former’s connection by inserting. It solves the current domestic problem that all the connections by manually beating.
• S lock former has the characteristics of high working efficiency and good quality of various hem shapes. It reduces the intensity of laborers.

I: S lock former’s advantages:

• lThe Multifunctional S lock former also known as the seam bite machine, It is a general-purpose traditional HVAC air duct-making machine.
• The Customers can change the required rolling rollers according to their requirements, one S lock former can make different hems and also different hems connecting with each other to achieve a multi-function of one machine, a variety of coordination, and a wide range of adaptability.
• The S lock former is light, easy to move, and suitable for on-site construction. It is very convenient for the customers and the speed can reach 9m/min.
• The multi-functional rolling roller S lock former is sturdy and durable, and the rollforming is fast and precise, and no special maintenance is required.
• S lock former with super long service life, the S lock former adopts a heavy-duty chassis, arc-welded steel frame, and high-quality motor.
• High-precision bearings, quenched and heat-treated rollers and S lock former are more durable, stable in quality, and easy to install.
• S lock former is flexible in movement, simple in operation, and convenient in usage, it can meet the different needs of customers.

II: S lock former’s technical parameters

• Standard S lock former can make different 5 kinds of hems. (S hem, elbow hem, c cleat hem, Pittsburgh hem, standing hem)

The sheet width before S hem forming is 94mm. The sheet width before C cleat forming is 55mm. The sheet width before the Pittsburgh hem forming is 35mm.

We can also customize 5 different sizes of hem types according to customer requirements.

• The thickness of the sheet processed by the S lock former is 0.4mm-1.0mm. The larger size can also be customized by the S lock former.
• The power of the S lock former is 2.2kw. The high-quality motor can save the power consumption of the factory and also labor cost.
• The overall size of the S lock former is 1450*700*1100mm and the weight is 360kgs. The machine is light and easy to move.

III: S lock former’s function

The main function of the S lock former is rollforming 5 different hems.

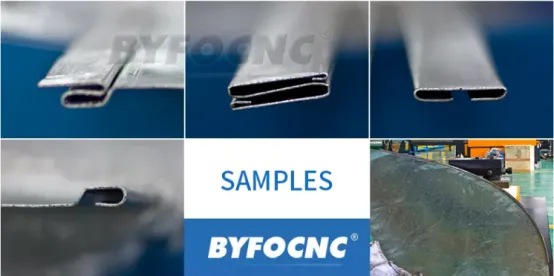

S hem, elbow hem, c cleat hem, Pittsburgh hem, standing hem

The sheet width before S hem forming is 94mm. The sheet width before C cleat forming is 55mm. The sheet width before the Pittsburgh hem forming is 35mm.

Also, customers can customize the different sizes to their requirements.

CS hem can be connected to rollforming the CS flanges.

Customers can do CS flange forming square duct.

The C cleat and the S hem can also be rolled to form a new connection.

The air duct connected by CS flange is a new and popular connection method. Compared to other kinds of duct connections, The CS flange connection has better air tightness.

III: Some main parts of S lock former

• Elbow part: This part is mainly made of ball bearings. When customers are making the elbow hem, The elbow part can be roll-formed faster and save labor costs.

• The whole host part: This part is mainly composed of rollers. There is a total of 8 sets of rollforming rollers in the S lock former. Eight sets of rollforming rollers are made of 53 hardness-bearing steel materials.

• Each set of bearing steel rollforming roller is composed of high-quality 40CR bearing steel with heat treatment.

40CR bearing steel ensures the quality of the S lock former and also strengthens the service life of the machine.

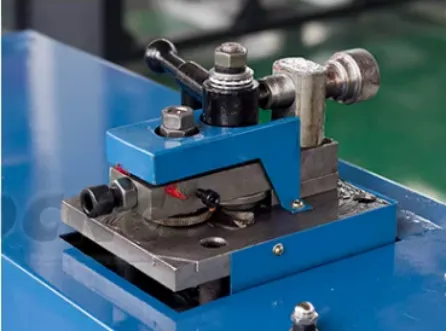

• The wear-resistant positioning plate on the S lock former ensures the precise positioning of various hems It is also convenient for customers to adjust.

• The whole frame adopts steel welding technology and the whole machine is sturdy and easy to move.
• The inside of the S lock former is driven by the motor, The motor drives the pulley to rotate the gear. Gear drives the rollers to roll from various hem shapes.

• The power of the motor is 2.2kw. It ensures the high quality, stability, high efficiency, and long life of the S lock form
