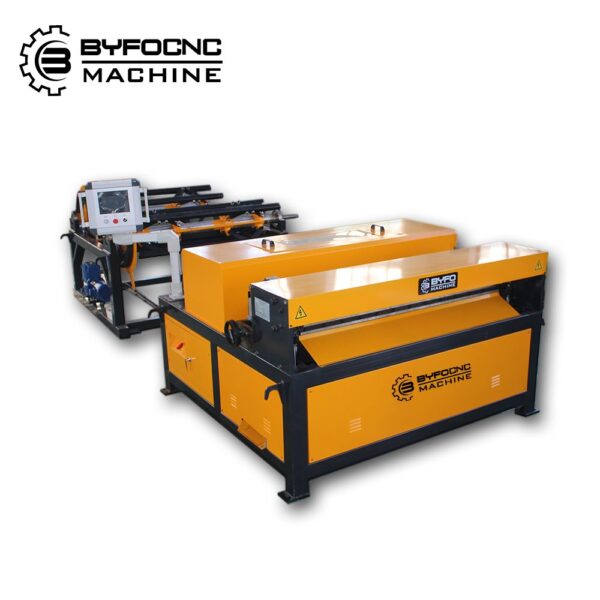

Square Auto Duct Line II




Square Auto Duct Line II


HVAC equipment



I. Performance Features:

Aluminum alloy suspension arm make the machine easy to operate.

The build-in control cabinet reduces wiring as a whole structure and make it easy to move.

The imported configuration is very stable and comfortable to use.

II. Function:

Duct production line 2 can drive blanking for duct and TDF flange forming machine at the same time. Combined with TDF flange forming machine, rolling reel machine, crimping machine and relevant corner code, duct production line 2 can produce high-quality products.

III. Main Import Configuration:



HVAC equipment



IV. Basic Configuration:

One electric coil cradle(two material trays)

One set of leveling and beading equipment

Hydraulic angle-shearing machine with four sets of die

Hydraulic sheet-shearing machine

A set of CNC computer control system and production software

V. Main Technical Parameters



HVAC equipment



VI. Working Schematic Diagram



HVAC equipment



VII. Work Flow



HVAC equipment
