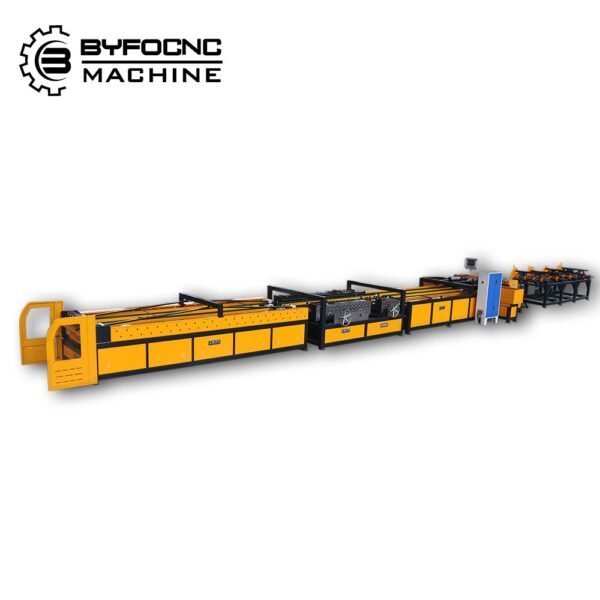

Square Auto Duct Line Machine V has a Compact U-type structure that needs litter space, very suitable for the medium-small plant, and pneumatic mechanical manipulators push plate in conjunction with combined nip machine, high speed, and positioning more accurate.
I. Main Features:
Compact U-type structure needs litter space, very suitable for medium-small plant.
Pneumatic mechanical manipulators push plate in conjunction with combined nip machine, high speed and positioning more accurate.
Stepping out from traditional processing method, the nip machine can save a lot of time and significantly improve production efficiency.
Save labor, high efficiency, a piece of L semi-finished product can be finished in 22 min
With production manage function: Day Count, Cumulative Count
Two kinds of input modes (touch screen and keyboard) ensure operation reliability
Optional rod punching, laminating functions
II. Main Functions:
Mainly used for processing TDF flange straight pipe and angle flange ¡°C¡± bone flange, production capacity: 800-2500m2/day
Only need input size, production line could automatically uncoiling, leveling, bending grooving, notching, Pittsburgh lock, TDF flanging forming, angle flange ¡°C¡±bone flange forming, folding square.
Leveling roller is¦µ70 solid roller, made by 45# hardening and tempering steel coated with hard chrome to ensure service life and leveling effect, and protect the metal sheet surface.
Grooving roller is¦µ100 solid roller, made by 45# hardening and tempering steel coated with hard chrome to ensure service life and grooving effect and beauty-appearance.
Conjunction with hydraulic shearing machine whose blade made by 6CrWu2Sisteel, ensures the cutting accuracy ¡À0.5mm without turned edge and burr.
III. Standard Accessories:
Electric uncoiler 1 set (including 4 material trays of 8T)
Support frame
Leveling device
Bending grooving device
Notching Device
Hydraulic shearing machine
1# transmitting platform
Pittsburgh lock machine (combined angle platform)
2# transmitting platform
Tandem TDF flange machine
Tandem angle flange machine
Servo square-folding machine
Controller
IV. Main Import Configuration:
V. Main Technical Parameters
VI. Working Schematic Diagram
VI. Work Flow
