In HVAC ventilation duct systems, elbows are core components for changing airflow direction. Among them, the circular elbow, which is spliced together from multiple fan-shaped pipe sections, is named the Shrimp Elbow because it resembles a shrimp.
Traditional elbow manufacturing requires manual layout, cutting, and welding, a cumbersome process with inconsistent quality. BYFO elbow machine is specifically designed for this purpose, integrating flanging, biting, and seaming processes, making circular elbow processing as simple as an assembly line.
I. What is an Elbow Machine?

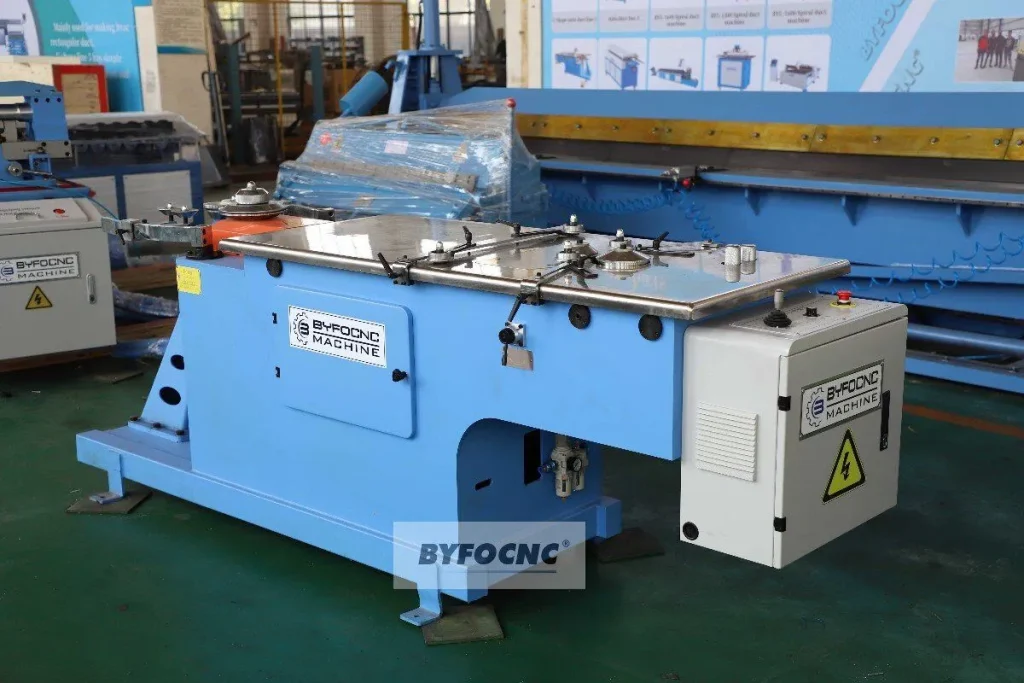

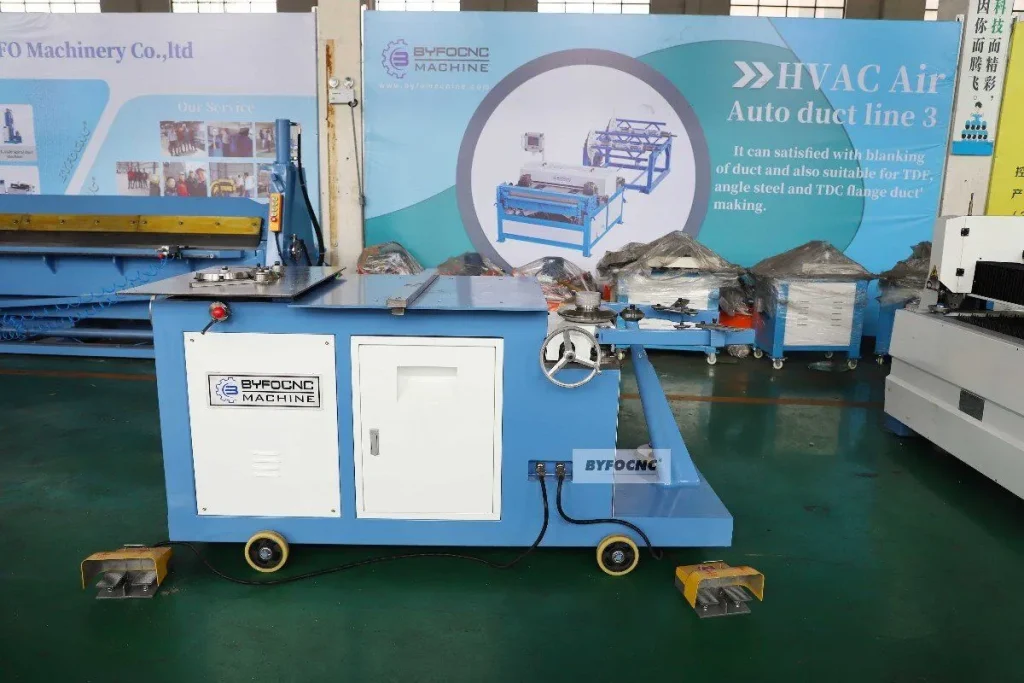

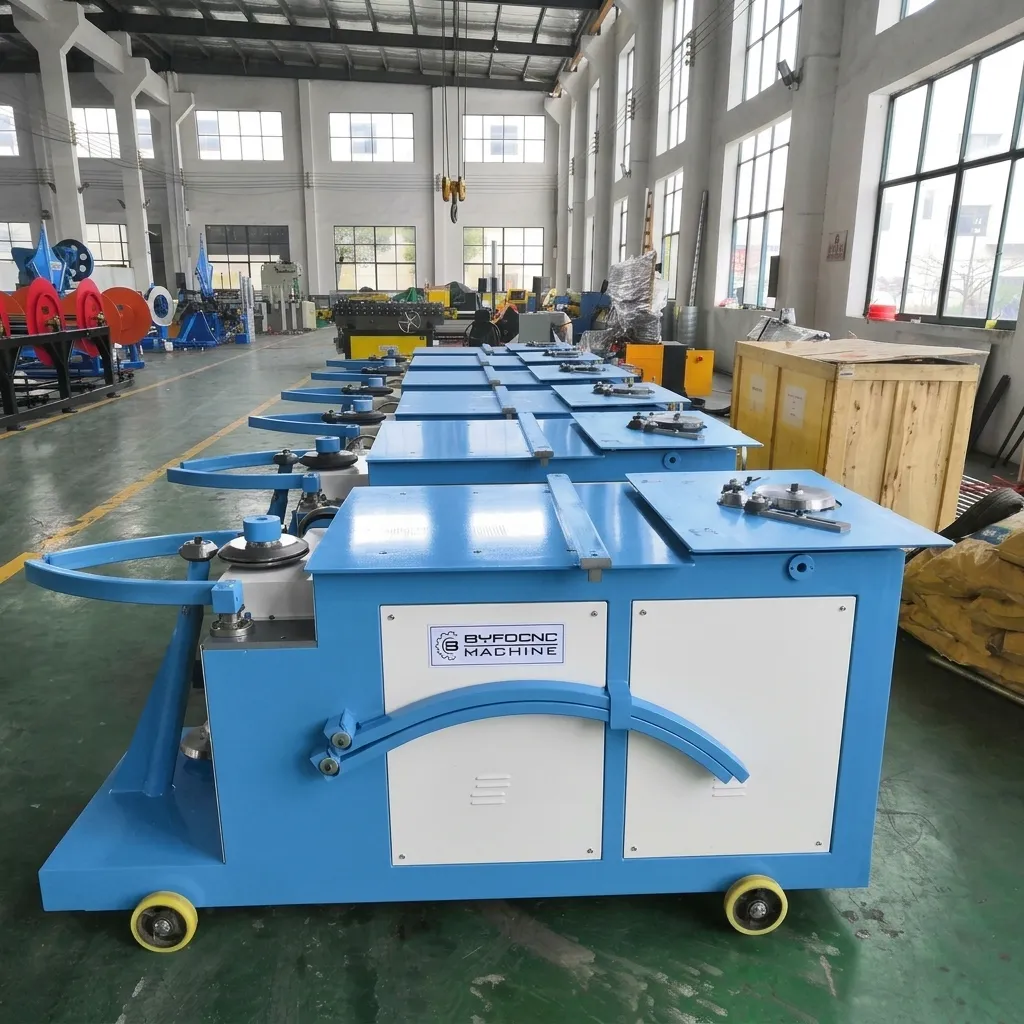

An elbow machine is a specialized piece of equipment used to manufacture circular duct elbows. It processes fan-shaped sheets into connectable elbow segments through flanging, biting, and seaming processes.
Comparison with traditional manual manufacturing:
Comparison item Manual manufacturing BYFO elbow machine
Material cutting method Manual layout, line marking cutting Precision material cutting with plasma/laser cutting machine
Flanging forming Manual striking is inefficient and results in uneven surfaces Hydraulic/electric one-time forming, flat and uniform
Splicing seaming Spot welding and grinding are time-consuming and pose a high risk of air leakage. Mechanical biting and seaming ensure a strong and airtight seal
Quality stability Dependent on the craftsman’s skill, large batch variations Mechanical control, consistent for every piece
Manpower demand 1-2 skilled sheet metal workers One general worker to operate
II. Core Advantages of the BYFO Elbow Machine
- Multi-functional machine, integrated processes
The equipment integrates the core processes of elbow processing: flanging (flange edge forming) + lock forming (joint locking) + seam closing (splicing and fixing). From fan-shaped sheet to formed elbow section, one machine completes the entire process in one go. - Wide applicability, compatible with multiple materials
- Processing diameter: Φ120–1250mm (covering common elbow specifications)
- Processing sheet thickness: 0.4–1.2mm (galvanized sheet); 0.4–1.0mm (stainless steel/aluminum sheet)
- Applicable materials: One-click switching between galvanized sheet, stainless steel, and aluminum sheet
- High forming precision and good consistency
- Utilizes a high-rigidity frame and precision molds to eliminate vibration stress
- Flat flange edges, tight bites, and neat seams
- Produced elbow segments can be directly connected without secondary trimming
- Simple operation, even general workers can do
- Electric/Hydraulic drive, foot switch control
- No complex programming required, changing specifications only requires mold adjustment (completed within 15 minutes)
- Comes with detailed Chinese and English instructions + operation videos
III. Technical Parameters (Reference)
Parameter BYFO Elbow Machine
Processing diameter range Φ120–1250mm
Processing sheet thickness 0.4–1.2 mm (galvanized sheet)
0.4–1.0 mm (stainless steel)
Power 3-5kW
Weight 460-750kg
External dimension About 2250×900×1050mm
Power supply 380V/50Hz
(Other voltages can be customized)
Control method Foot pedal switch + Manual adjustment
Note: The above parameters are for standard model reference; the actual configuration shall prevail.
IV. Elbow Production Process (Supporting Solutions)
To efficiently produce elbows, a combination scheme of cutting and forming is recommended:
步骤 设备 作用
- 下料 等离子切割机/相贯线切割机 将平板切割成扇形弯头节片
- 翻边+咬口 弯头机 将扇形片翻出法兰边、压出咬口
- 合缝拼接 弯头机 将多节弯头片机械咬合固定
- 连接（可选） 焊接/法兰 根据项目要求加固
BYFO offers complete solutions: plasma cutters + elbow machines + spiral duct machines, providing one-stop service for the production needs of circular ducts and fittings.
V. Why Do Overseas Customers Choose BYFO?
- Professional manufacturer: BYFO has focused on the R&D and manufacturing of duct equipment for over 20 years. Its products have been exported to Southeast Asia, the Middle East, Europe, and other countries and regions.
- Remote technical support: Chinese and English instruction manuals + operation videos + engineer video guidance for installation and commissioning.
- Global shipping of parts: Molds, cutting tools, and other consumable parts are kept in stock; DHL/FedEx fast shipping.
- Warranty service: 24-month warranty on equipment (critical components); free replacement for non-human-caused damage within the warranty period.
VI. Summary
Elbows are an indispensable fitting in circular duct systems. BYFO elbow machines integrate traditionally tedious manual processes into a single machine, helping you:
- Increase efficiency: 3-5 times faster than manual production
- Guarantee quality: Smooth bites and tight seams
- Lowering the threshold: Ordinary workers can operate it
- Expand your business: Undertake more round duct projects
Need to configure elbow processing equipment for your duct production line? Contact BYFO, tell us your commonly used pipe diameters and sheet thicknesses, and we will recommend a suitable model for you within 24 hours.
