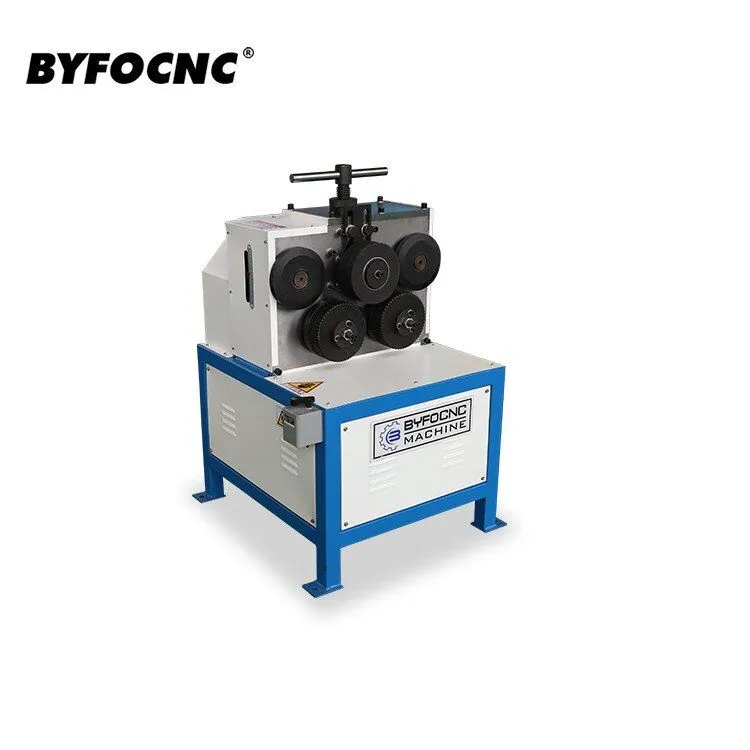

Electric Angle Rolling Machine

Angle Roller machine used to roll out shapes of materials such as bars, rods, channels, H & I-beams, pipes, tubing, and other solid structures to a specific radius or diameter.

Introduction:

Rollers are the round parts that spin to bend and shape the metal within the machine. Each has at least one pinching roll that’s used to feed the metal into the machine. Mechanical angle steel roll bending machine, it is easy to change the forming rolls depending on requests: angle steel, plat iron, round pope, channel steel and squ5are tube. the distance of three rollers could be adjusted during working to save material. Performance features There are 2 models of electric angle roller

• The one is YJ40, for Yield limit is 245N,the min dia of edge rolling is 200-400,main motor is 2.2KW,Reduction box is BWD2-59-3KW,Dimension is 820*790*1000mm,weight is 370KG. Different profile need to change different mold.

For example:Angle is Max 40*4 Flat bar is Max 40*6mm Square tube is Max 40*40*3 Round pipe is Max φ40×3

• If the YJ50 Yield limit is 245N, the min dia of edge rolling is 300-400,main motor is 3KW,Reduction box is BWD2-59-3KW,Dimension is 900*760*1100mm,weight is 400KG. For example:Angle is Max 50*5,Flat bar is Max 50*6mm,Square tube is Max 50*50*3,Round pipe is Max φ50×3.

model	JY-40	JY-50
Yield limit	245	245
Min dia	200-400	300-400
Angle	Max 40*4	Max 50*5
Flat bar	Max 40*6mm	Max 50*6
Square tube	Max 40*40*3	Max 50*50*3
Round pipe	Max φ40×3	Max φ50×3
dimension	820*790*1000	900*760*1100
weight	370	400
power	2.2	3

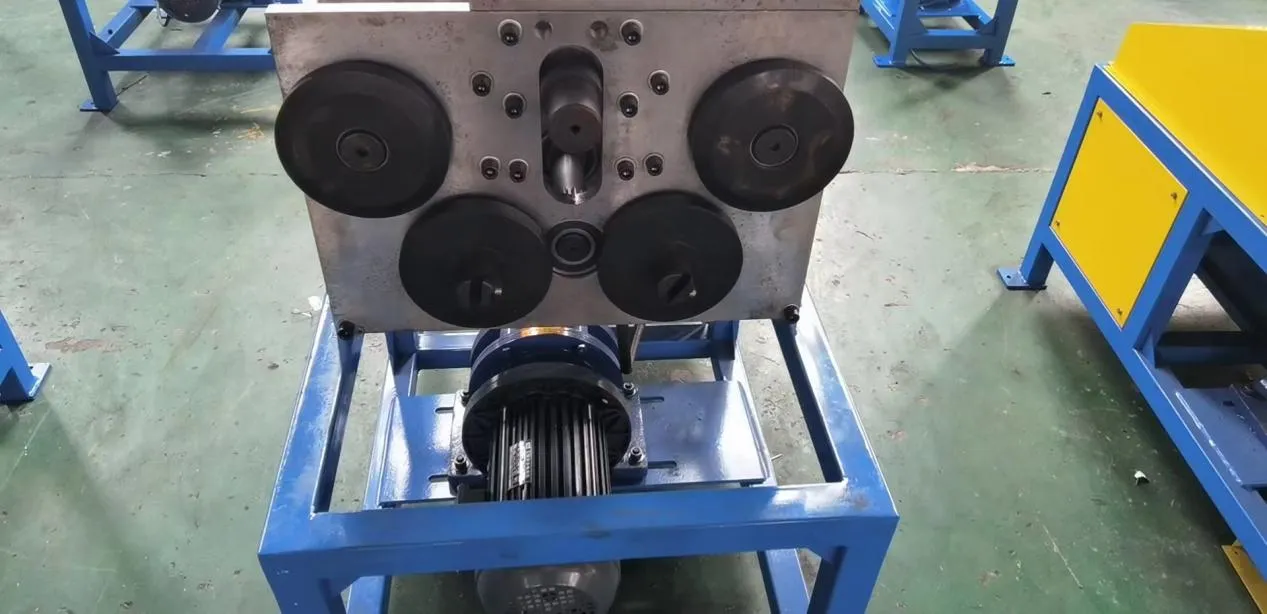

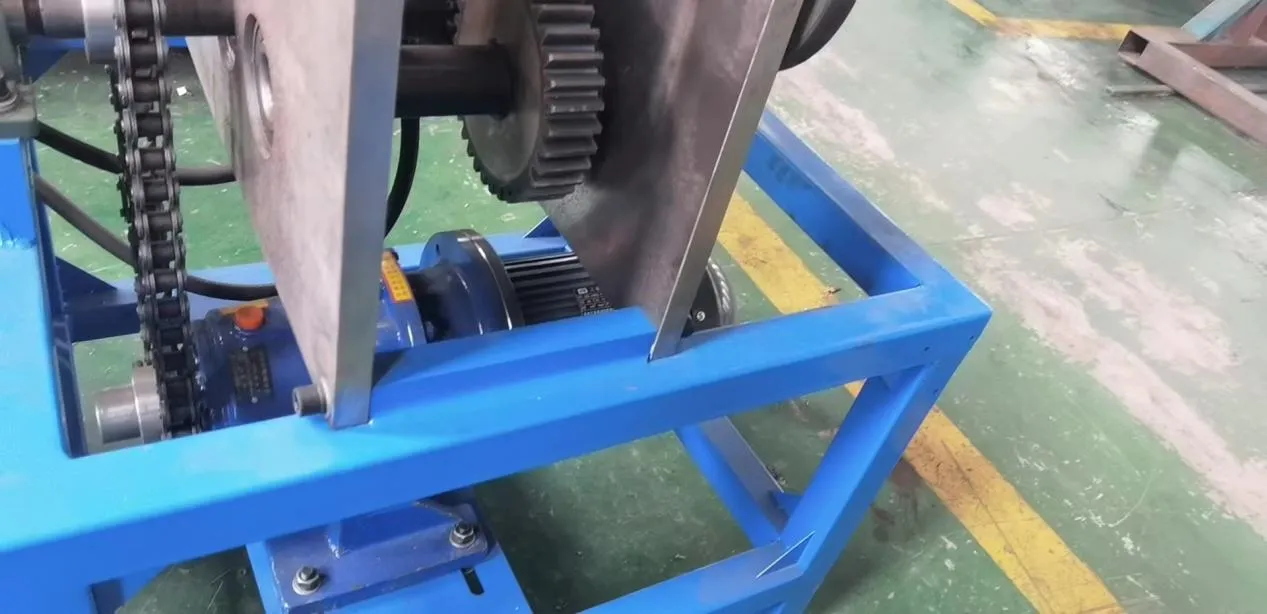

Some main parts of angle roller machine

• Motor
• link chain
• wheel gear
• profile mold

The hand shank to adjust gap of the upper roller and impact,then open the switch to roll it. Accessories list
