Heating, ventilation and air conditioning (HVAC) systems depend on ductwork to distribute conditioned air through buildings. Duct manufacture production line involves transforming large rolled sheets of galvanized steel and aluminum into straight and shaped duct sections ready for installation. Automated production lines enable high-volume efficient duct fabrication with quality and consistency. By coordinating roll forming, cutting, punching and joining processes, duct lines craft precision HVAC components.

Efficient Duct Production Through Automated Manufacturing Lines

Raw Material Handling

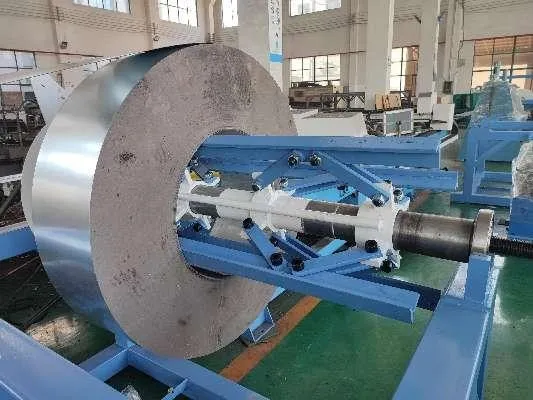

Duct manufacture production line begins with metal coil stock prepared to required widths and gauges. Overhead cranes mount large tons of rolls on unwind stands. Powered decoilers gradually feed sheet metal into the line as downstream processes draw material. Feed rollers equipped with servo drives control the blank coil tension and speed to optimize material flow. Decorilers also allow rapid coil changes for switching sheet gauges and metals.

Precision Roll Forming

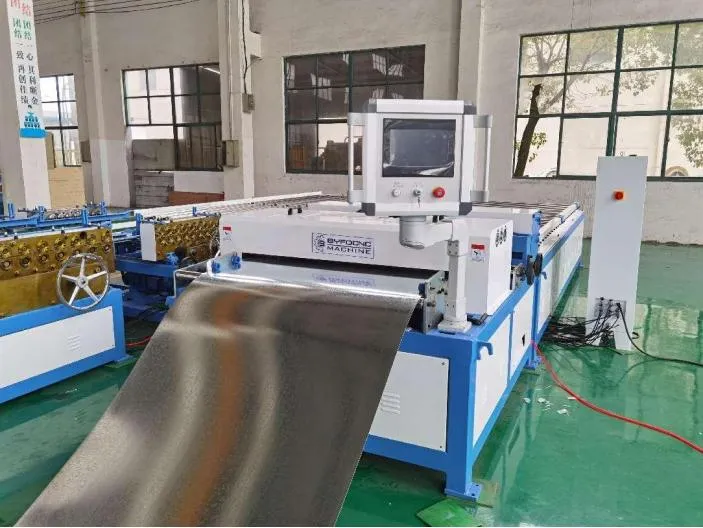

Roll forming stations progressively shape flat sheet metal into the desired duct profiles. Consecutive pairs of contoured rollers incrementally bend the advancing sheets into rounded or angular duct sections. Rolling die steps are engineered to control metal flow rate and avoid jams. Since forming happens gradually, the metal retains integrity across the changing shapes without cracks or thinning.

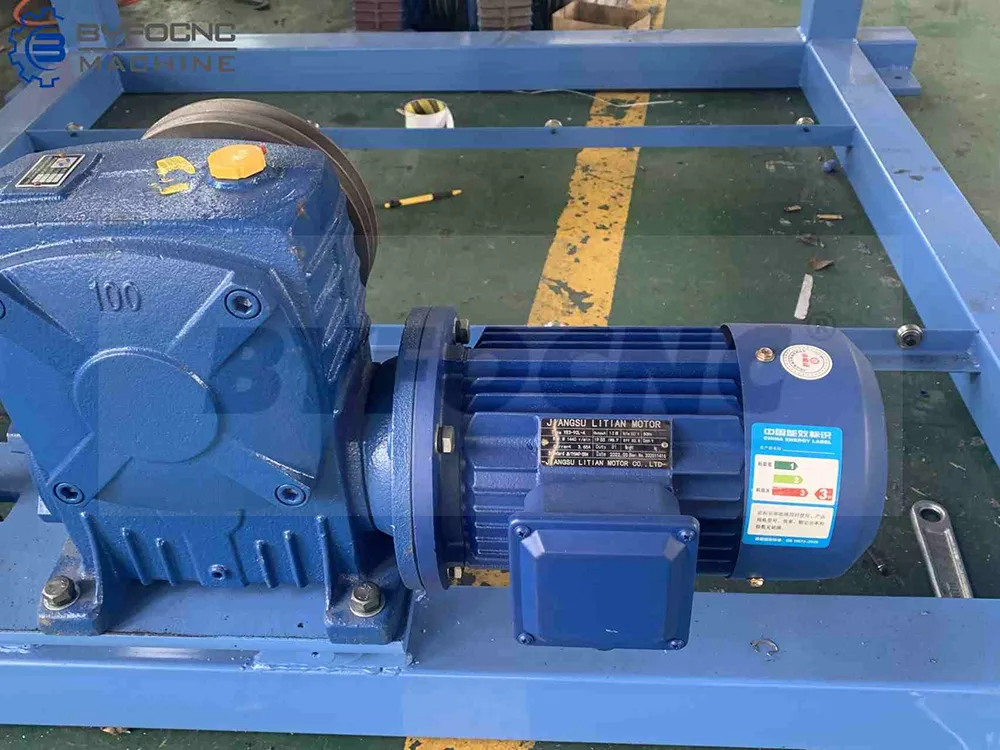

Electric servo motors coupled to gearboxes power the rotating rollers. PLCs coordinate the high precision roller movements to maintain optimal forming speed and pressure. Rollers are easily switched out for interchanging profiles. Different duct dimensions are saved as master recipes, enabling quick production changeovers.

Efficient Duct Production Through Automated Manufacturing Lines

Cutting and Punching

For straight duct runs, spinning circular saws or fast guillotine cutters slice formed sheets to specified lengths based on order requirements. Length sensors feed position data back to the line control for automatic precision cutting. Punching stations use hydraulic presses to knock outpre-defined hole patterns for branches, dampers and connections. Punch tools are readily changed for new hole configurations. Scrap pieces are automatically discarded.

Hemming, Seaming and Joining

Rolling hemming stations fold over sheet edges to reinforce sides and prevent sharp burrs. This safeguards installers from cuts while fortifying duct integrity. For curved ducts, specialized bending machines crimp edges to create snug, overlapping seams. Mechanical seamers apply lock channels along edges to permanently connect duct sections. Sealer applicators dispense liquid sealants into seams for airtight assemblies.

Efficient Duct Production Through Automated Manufacturing Lines

Leak and Quality Inspection

As fully assembled ducts exit the line, technicians check for flaws in fit, seal and construction. Leak testers pressurize duct interiors while monitoring pressure decay. Thermal imaging cameras detect temperature discrepancies indicating insufficient insulation or gaps. Ducts are also visually inspected for dents, tears or substandard sealing. Defective sections are removed and scrapped or recycled.

Finishing and Warehousing

Finished ducts move to cleaning stations to remove oil and condensation before paint or durable polymer coatings are spray applied for surface protection and aesthetics. Cured coatings resist scratches during shipping and installation. Barcodes are adhered for tracking through warehousing and delivery. overhead conveyors transport assembled ducts to palletizing stations and inventory racks. Facility layouts optimize material flows from production to finished goods storage.

Line Control and Monitoring

All stations interconnect to the main production line control which sequences fabrication processes. PLC hardware communicates with device drives, HMIs, sensors and safety switches to synchronize operations. Data aggregation monitors production metrics like material usage, scrap rates and hourly output. Operators manage recipes and line parameters through centralized touchscreen interfaces.

Automated duct production achieves rapid throughput of precision HVAC components. By tightly coordinating material handling, forming, cutting, assembly and finishing processes, duct lines enable lean and efficient high-volume fabrication. Integrated automation technologies maximize manufacturing consistency and minimize material waste.

Efficient Duct Production Through Automated Manufacturing Lines


Automated duct manufacturing lines exemplify the efficiency gains achievable through well-coordinated automation technologies and optimized processes. Rather than operating as disconnected stations, the various fabrication steps interface as an integrated production line controlled by central PLCs and HMIs. The sequential processes transform raw metal coils into finished duct sections ready for installation.

It begins with powered decoilers feeding sheet metal into forming stations containing contoured rollers that incrementally shape flat sheets into duct profiles. Electric servo motors control roller movements to avoid jams and flaws based on ideal pressure and speed parameters calculated by the line control. Programmed saws or guillotine cutters then slice formed sheets to order specifications as length sensors provide precision feedback. Hydraulic punch presses knock out predefined hole patterns for duct branches and connections.

To fortify completed duct sections, hemming rollers fold edges to prevent sharp burrs while specialized machines apply interlocking seam channels and sealant beads for airtight performance. Leak testers and thermal cameras inspect final ducts, removing any with insufficient seals or insulation gaps. Polymer coating stations apply protective and aesthetic finishes. Conveyors finally transport finished ducts to inventory and shipping areas, optimized for material flows.

By coordinating the full range of duct fabrication processes through automated actuators, sensors, and central control, production lines achieve rapid throughput with maximized quality. The integration of handling, forming, cutting, finishing and inspection improves consistency while minimizing scrap. Automated duct manufacture production line utilizes interconnected automation technologies for lean and precise fabrication, exemplifying the benefits of holistic process integration and optimization.
