Introduction
In the HVAC system, the air duct is the key channel for conveying air, and its manufacturing process and quality have a direct impact on the efficiency and stability of the system. The elbow lock forming machine is the core equipment for duct production, which is essential for efficient and accurate elbow production.
Elbows are used to change the direction of air flow in the duct system, and their quality directly affects the air circulation performance. High-quality elbows can reduce air flow resistance, reduce energy loss, and improve system energy efficiency. On the contrary, poor-quality elbows will increase operating costs and affect indoor air quality and comfort.
The elbow lock forming machine improves the efficiency and quality of elbow production through advanced CNC technology and automated production, ensuring the realization of high quality standards.
In the HVAC market, improving production efficiency, reducing costs, and ensuring product quality are the key to a company’s foothold. The efficient production capacity and stable quality output of the elbow lock forming machine help companies improve their market competitiveness and brand image.
Therefore, it is of great significance for industry practitioners, production enterprises and researchers to deeply understand the working principle, technical characteristics, application scenarios and maintenance of elbow lock forming machine. This article will comprehensively explore the value and application prospects of this equipment in the field of HVAC duct production.
What is Elbow Lock Forming Machine
(I) Definition and basic concepts
Elbow lock forming machine, that is, elbow lock forming machine, is a key equipment specially used in the field of duct manufacturing. Its main function is to accurately process metal sheets into elbows with specific angles and shapes, and complete the lock edge process to ensure the structural strength and sealing of the elbows. In the entire duct manufacturing process, it is a relatively critical link. After the metal sheet is cut and leveled in the early stage, it will enter the elbow lock forming machine for elbow forming. The elbow processed by it is an important component for changing the direction of air flow in the duct system, just like the joints of the human body, allowing air to flexibly turn in the duct and be transported to various required areas. If the duct system is regarded as the blood circulation system of the human body, then the elbow is the bend of the blood vessel, and the elbow lock forming machine is the craftsman who creates these key bends. Its importance is self-evident.

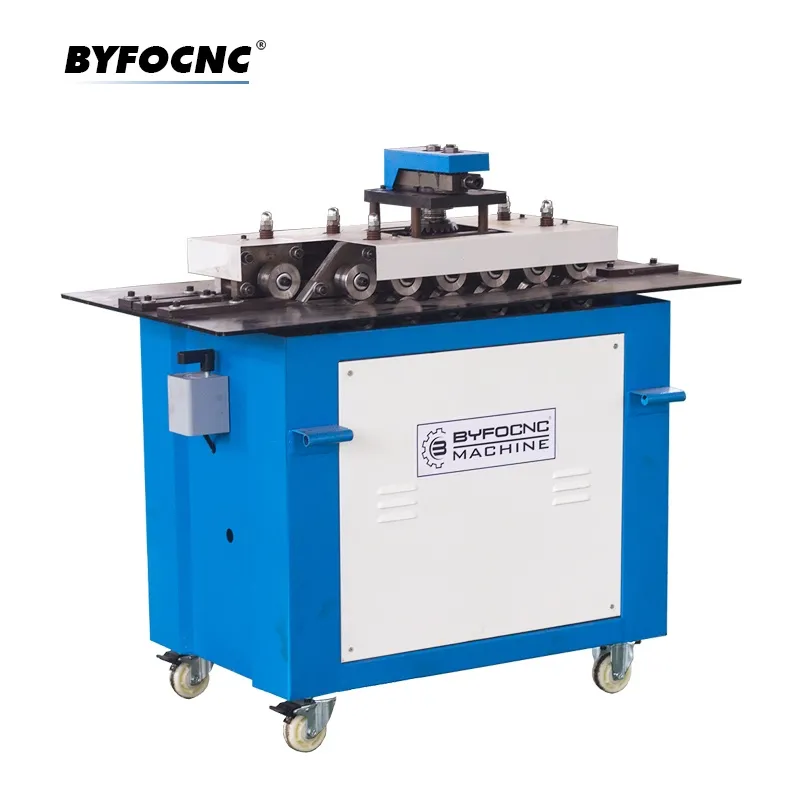

(II) Appearance and structural features
Elbow lock forming machine is usually a rectangular parallelepiped, made of high-strength metal, with surface treatment to prevent rust and durability. The size varies depending on the model and production capacity, but all can accommodate core components and operating tables.
The forming mold is the core component, which determines the shape and dimensional accuracy of the elbow. It is composed of adjustable modules, which can be quickly replaced and adjusted to produce elbows of different angles and specifications. The mold is made of special alloy steel with high hardness and wear resistance. It can withstand processing pressure and friction, ensuring long-term stable production of high-precision products.
The transmission system consists of a motor, a reducer, a transmission shaft, gears and chains to provide power for the equipment. The motor provides energy, the reducer reduces the speed and increases the torque, and the transmission shaft accurately transmits power to the mold and actuator to achieve accurate feeding, bending and locking of metal sheets. The design accuracy and stability of the transmission system affect production efficiency and product quality. An efficient and stable system can reduce vibration and impact and improve product quality.
The equipment is equipped with a CNC system or PLC. Production parameters such as angle, radius, plate thickness, etc. are input through a touch screen or buttons. The control system accurately controls the movement of components to achieve automated production. Intelligent control systems improve production efficiency and product accuracy, reduce operating intensity, and reduce the impact of human factors.
Working principle revealed
(I) Core working principle
The elbow lock forming machine transmits power to the working parts through the motor and transmission system, and uses mold forming technology to process metal sheets. The sheet is plastically deformed under the pressure of the mold to form an elbow with a specific angle and radius. For example, a 90-degree elbow is processed by a precisely designed mold. The equipment also locks the edge of the elbow to enhance the sealing and structural strength to ensure stable operation of the system.
(II) Step-by-step analysis of the work process
Feeding stage: The metal sheet is automatically fed into the feed port through the automatic feeding rack and the induction device, and the deformation and stress are eliminated through the leveling device to ensure the flatness of the sheet, preparing for precise processing.
Forming stage: After the sheet enters the forming mold area, the mold is closed under the drive of the hydraulic or mechanical transmission system, and pressure is applied to bend and deform the sheet. The equipment is equipped with a temperature control system to control the temperature of special material sheets to avoid forming defects.
Discharging stage: The processed elbow is taken out by a conveyor belt or a robotic arm and transported to the designated area. The discharging device is equipped with protective measures and quality inspection devices to ensure that the quality of the elbow meets the standards.
Advantages of Elbow Lock Forming Machine of Nanjing Baifeng
(I) Advanced technical parameters
The elbow lock forming machine produced by Nanjing Baifeng Machinery Co., Ltd. shows outstanding advantages in technical parameters. Taking one of its main models as an example, in terms of processing accuracy, it can achieve high-precision control of ±0.1mm, and both the angle deviation and dimensional error of the elbow can be strictly controlled within a very small range. This level of accuracy is about 30% higher than the average accuracy of similar products on the market. For example, in some high-end commercial building projects that require extremely high sealing and airflow uniformity of the duct system, such as some top office buildings in Nanjing, the elbows produced by Baifeng elbow lock forming machine are professionally tested after installation and fully meet or even exceed industry standards, effectively reducing air leakage caused by elbow precision problems and improving the operating efficiency of the HVAC system.
In terms of production speed, the machine can complete the processing of 3-5 standard elbows per minute, and the production efficiency is much higher than the market average. Assuming that a medium-sized duct production project needs to produce 5,000 elbows, if ordinary equipment is used, it will take 41.7 hours to complete it based on an average production of 2 elbows per minute; while using Baifeng’s elbow lock forming machine, it only takes 20.8 hours to produce 4 elbows per minute, which shortens the production time by about half, greatly improving the delivery speed of the project, saving a lot of time costs for the company, enabling it to undertake more orders and enhance market competitiveness.
(II) Excellent performance
Baifeng’s elbow lock forming machine performs well in stability and reliability. The key components of the equipment, such as forming molds and transmission systems, are made of high-quality materials and advanced manufacturing processes. The forming mold is made of special alloy steel. After multiple heat treatments and precision machining, it has high hardness and strong wear resistance. It can withstand long-term and high-intensity working pressure, ensuring that the precision and performance of the mold remain stable during mass production. In actual applications, many customers have reported that Baifeng’s equipment can still stably produce high-quality elbows after running continuously for thousands of hours, reducing downtime caused by equipment failure and improving production continuity and stability. The transmission system is equipped with high-performance motors and precision reducers, which ensure smooth and efficient power transmission and reduce vibration and noise during equipment operation. At the same time, the equipment also uses advanced lubrication systems and cooling systems, which can effectively reduce the wear and temperature of key components and further improve the reliability and service life of the equipment. For example, in the ventilation duct production workshop of a large factory, Baifeng’s elbow lock forming machine has been running stably for more than 3 years. During this period, only routine maintenance was carried out, and there has never been a production interruption due to equipment failure, which provides a strong guarantee for the efficient production of the factory.
(III) Humanized design details
In terms of operational convenience, Baifeng’s elbow lock forming machine is equipped with an intuitive and concise operating interface. With a large-size touch screen control system, operators can complete the setting of various production parameters and the start and stop of the equipment through simple touch operations. The menu design of the operating interface is clear and concise. Even operators who are new to the equipment can quickly get started after simple training. At the same time, the equipment is also equipped with a complete operating guide and fault prompt function. When the equipment encounters an abnormal situation, the system will automatically pop up a fault prompt message to guide the operator to investigate and solve it, greatly reducing the difficulty and pressure of the operator’s work.
In terms of maintenance convenience, the structural design of the equipment fully considers the maintenance needs. The key components adopt a modular design and are easy to disassemble and replace. For example, the replacement process of the forming mold is simple and quick. The operator only needs to use special tools to complete the disassembly and installation of the mold in a short time, reducing the maintenance time of the equipment. In addition, the equipment is also equipped with an automatic lubrication system and a regular maintenance reminder function, which can automatically add lubricating oil to key components to ensure the normal operation of the equipment, and remind the operator in time when maintenance is required, so that the company can arrange maintenance plans reasonably and reduce the maintenance cost of the equipment.
Reasons for choosing Nanjing Baifeng
(I) Company strength and reputation
Since its establishment in 2016, Nanjing Baifeng Machinery Co., Ltd. has rapidly risen in the field of HVAC equipment manufacturing and has become a well-known enterprise in the industry. The company is located in Nanjing, Jiangsu Province, with more than 6,000 square meters of modern industrial plants and advanced CNC processing equipment, providing hardware guarantee for high-quality product output.
The company has a team of more than 100 professional talents, including experienced R&D personnel, skilled production technicians and after-sales maintenance engineers. The R&D team continues to explore innovation and improve product performance and quality. For example, during the development of the elbow lock forming machine, the team solved the bottleneck problem of traditional equipment and made the product stand out in the market.
Baifeng has won market recognition and a good reputation with its high-quality products and honest business philosophy. Its products are sold well in domestic and foreign markets, and it has established long-term cooperative relations with many well-known companies. In large-scale construction projects at home and abroad, such as commercial complexes and large factories in Nanjing, Baifeng’s elbow lock forming machine has been highly praised by customers.
(II) Complete after-sales service
Pre-sales consultation: Nanjing Baifeng provides professional pre-sales consultation services, and a team of technical experts provides personalized equipment selection suggestions based on customer needs. Answer technical parameter questions, recommend suitable models, and provide return on investment analysis.
After-sales maintenance: Baifeng has established a complete after-sales maintenance network to provide rapid response services. Maintenance personnel solve faults through remote video or on-site maintenance to ensure that the equipment resumes normal operation in a timely manner, and provide 24-hour online customer service.
Technical training: Nanjing Baifeng provides technical training services, including operation methods, maintenance, troubleshooting, etc. There are various training methods, including on-site, online training and video tutorials to ensure that customers are proficient in the use of equipment.
