In today’s manufacturing industry, which is speeding up to automation and smartness, the old manual-dependent way of producing is slowly being taken over by effective, unified smart equipment. Particularly in the duct system making industry, since labor costs keep going up and client delivery times keep getting shorter, how to raise production levels and lower manufacturing costs has become the main concern of many duct makers. Following this trend, Models Punching Auto Line has fast become one of the spotlight machines in the field with its strong modular die changing feature, high-speed and steady automatic marking abilities, and integrated design.
This machine is used very much in making TDF and TDC duct flange angles. Also, it can change molds to grow the making of G-type clips (G Clip) and other special stamped parts, really achieving “one machine for many uses” and giving a perfect answer for top-notch making in the duct field.

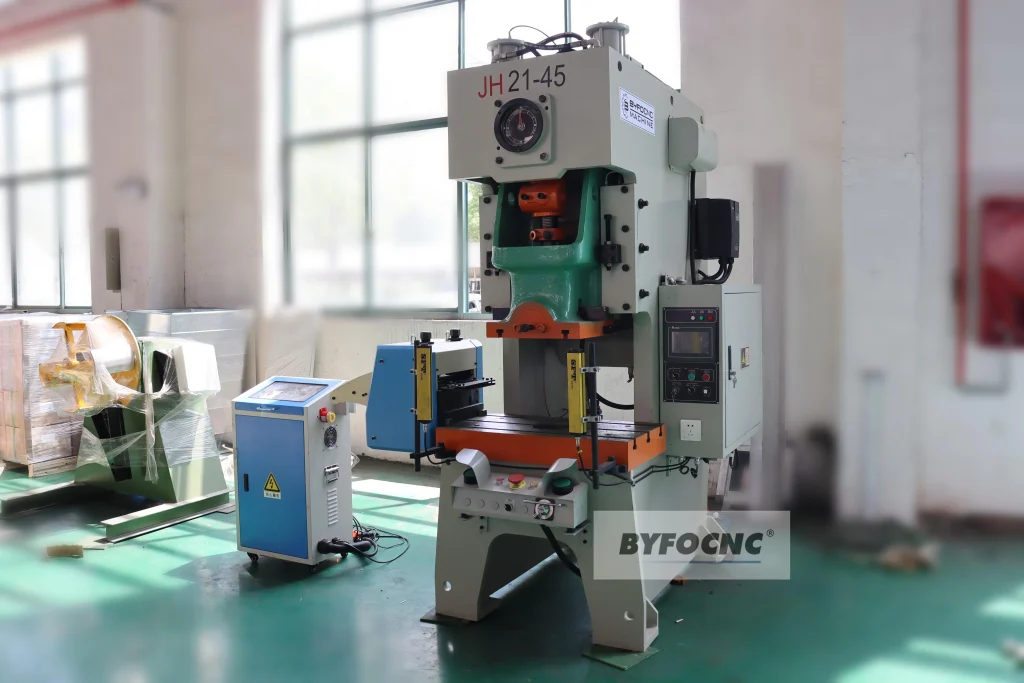

Models Punching Auto Line is an efficient and automated production equipment designed specifically for the stamping of duct angles. The system integrates uncoiling, leveling, feeding, die stamping, discharging, and other links into one, and cooperates with high-precision progressive molds (Progressive Moulds), which can realize continuous high-speed stamping operations, especially suitable for batch manufacturing of duct connectors such as TDF corners, TDC corners, and G-type clamps.
Compared to conventional single-machine stamping, this automated production line can realize unattended operation throughout the process. It greatly reduces the degree of manual participation, improves processing accuracy and production rhythm, and becomes key equipment for modern duct manufacturing companies to achieve “reducing staff and increasing efficiency”.
Core components and technical highlights of the equipment
1. Integrated structure design
This machine joins the (Uncoiler) and (Straightener) into one structure, which saves space and makes the feeding path better, less waste of material and time for making adjustments.
- Small design: fits all types of plant space layouts, best for small and medium-sized processing rooms.
- Flatting function: with a balance control system, it can manage high-precision materials it removing material bending and waves better and increasing stamping accuracy.
- Automatic feeding system: The feeding speed can be adjusted smartly according to the stamping rhythm so as to achieve seamless connection with the stamping rhythm.
2. High-precision progressive mold system (Progressive Moulds)
One or more sets of high-efficiency progressive stamping molds are the cores of the whole machine, switching flexibly according to product type, such as:
- TDF corner code mold
- TDC corner code mold
- G Clip mold
- Customized structural parts mold
The mold is of high-grade tool steel. After heat treatment, precision grinding, and hard chrome plating process, it has extremely high wear resistance and life, and the number of stamping times can reach more than one million times.
3. Roller system and hard chrome treatment
The leveling roller is made of solid bearing steel, and after high-frequency quenching and hard chrome plating, the hardness can reach HRC60 with the following advantages:
- Accurate leveling: it controls the initial error of the plate and improves the accuracy of the mold entrance
- Resistance to wear and corrosion: keeping the roller surface smooth in long use, avoiding material scratches
- Accurate feeding control: achieved millimeter-level feeding precision control with a fine-tuning mechanism
- Use modern frequency conversion controllers for stepless speed regulation and make the transition from normal speed to high-speed operation smooth.

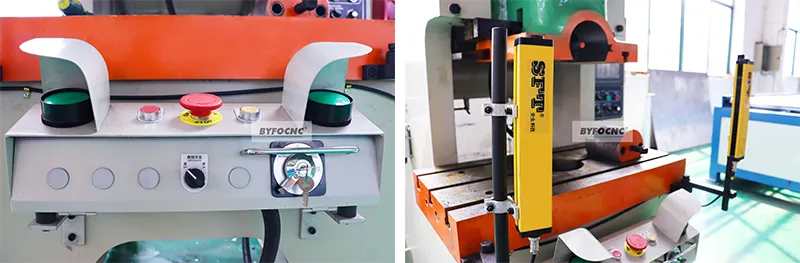

- Have a human-machine interface (HMI) that displays information on operating status, product counting, fault alarm, and many more in a very intuitive way.
Electric feeding & intelligent synchronization
The feeding system adjusts automatically to the rhythm of feeding according to the speed of discharge. It keeps synchronized the stamping and feeding and ensures the consistency of stamping precision. The motor is driven by a servo system, with flexible speed control and multi-stage rate setting ability.
Product application and adaptability
Application areas
- Duct making industry: This machine is applicable to make ducts for use in central air conditioning, ventilation ducts, purification ducts, smoke exhaust ducts, industrial air supply systems, etc.
- Building HVAC industry: This is applied together with spiral and rectangular ducts to make different flange angle codes.
- Sheet metal processing companies: This is used for the applicable small structural parts and high-precision hardware.
Product Compatibility
By changing different molds, the machine enables automated stamping of multiple corner structures, such as:
| Mold Type | Finished Product | Compatible Sheet Thickness | Daily Output (Approx.) |
|---|---|---|---|
| TDF Mold | TDF Corner Piece | 0.8~1.2mm | 10,000+ pcs |
| TDC Mold | TDC Corner Piece | 1.0~1.5mm | 8,000+ pcs |
| G Clip Mold | G Clip Fastener | 0.8~1.2mm | 12,000+ pcs |
Our product is built to ensure excellent compatibility across a wide range of systems, applications, and environments.
Whether integrated into existing infrastructure or used as a standalone component, it adapts efficiently to meet various requirements.
The design emphasizes flexibility, allowing seamless integration with TDC/TDF duct flange systems, G clip molds, and more.
This adaptability makes it ideal for manufacturers in dynamic production settings.
Product advantage analysis
1. High production efficiency
Continuous feeding + progressive mold = fast stamping;
There can be completed dozens of forming per minute, and the efficiency is 3 to 5 times that of manual or single-punch equipment;
Can run multi-shift nonstop to fulfill large order deliveries.
2. Very good stability and uniformity
The electrical system uses imported parts with a very low failure rate.
Every unit has the same stamping size and no sharp edges, with a pass rate of over 99%.
Greatly cuts the pressure on quality control and rework costs later.
3. Cuts labor costs
Automatic control over the whole process, just one person for management.
Avoids repetitive work and reduces the burden on workers;
Follow the development direction of “unmanned workshops” in the future.
4. High space utilization
The integrated structure saves more than 30% of floor space.
Flexible layout, suitable for a new plant or renovation, and upgrading workshop.
Maintenance recommendations
To ensure long operation with stability of the equipment, the following maintenance should be performed regularly:
- Keep the stamping area free of metal debris daily.
- Check the gap between mold screws and rollers every week to make sure it is not loosening or offset;
- Check whether the electronic control wiring is loose every month so that good contact can be maintained.
- Add or replace oil to the lubrication system quarterly.
- In case of sudden failure, avoid unauthorized disassembly and get it handled by professionals.
Models Punching Auto Line is an automated equipment and tool for the duct industry upgrade and transformation. High precision, high efficiency, low manpower, and high adaptability advantages make it possible for enterprises to effectively cope with the dual challenges of rising labor costs and tight market delivery cycles.
In the context of the modern manufacturing industry’s increasing emphasis on “flexible production” and “lean management”, investing in a stable and reliable automatic corner code stamping production line not only improves product quality and brand image but is also a solid step for the company towards intelligent manufacturing.
