In the modern era of industrialization and infrastructure development, efficient air distribution systems have become a fundamental component of commercial and residential buildings alike. HVAC (Heating, Ventilation, and Air Conditioning) systems play a pivotal role in maintaining indoor air quality and thermal comfort. At the heart of these systems lie various ducts and connectors that facilitate airflow. Among these connectors, elbow joints – especially those that feature corrugation – are critical for redirecting airflow at various angles without causing pressure loss or structural instability.
This is where the Corrugated Elbow Machine comes into play – an innovative and indispensable solution designed to produce high-quality corrugated elbows with precision, consistency, and speed. Whether you’re in the HVAC manufacturing industry, a mechanical contractor, or an industrial equipment distributor, understanding the capabilities and advantages of this machine can offer significant competitive benefits.
What is a Corrugated Elbow Machine?

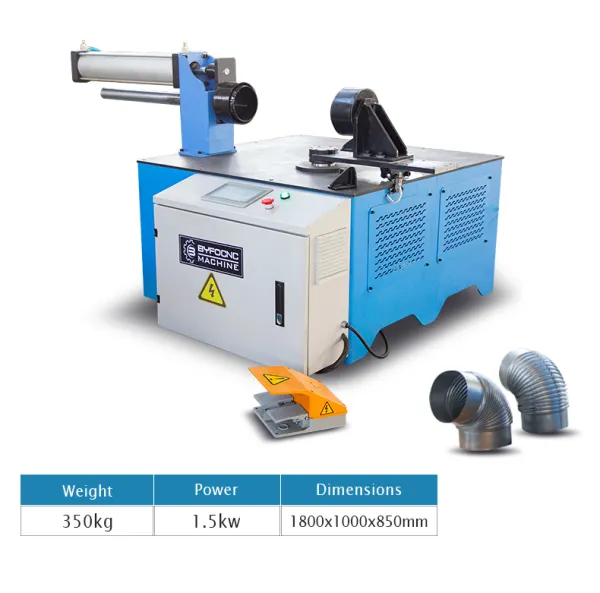

A Corrugated Elbow Machine, also known as a ripple elbow machine, is a specialized piece of industrial equipment used for manufacturing corrugated or ripple-formed elbow joints that connect two round air ducts at an angle, most commonly 90 degrees or 45 degrees. These elbow fittings are particularly essential in tight corners or complex duct routing scenarios where traditional straight pipes are not feasible.
Unlike standard elbow manufacturing equipment, a corrugated elbow machine integrates two core mechanisms:
- Ripple Forming Equipment – Responsible for creating the characteristic corrugations (rippled patterns) on the pipe surface, which add strength, flexibility, and a higher degree of durability to the finished product.
- Bending Device – Precisely bends the corrugated section to the desired angle, ensuring a snug and leak-proof connection between round ducts.
This combination of form and function results in a robust elbow fitting that can withstand pressure variations, mechanical stress, and vibration, making it ideal for industrial HVAC applications, ventilation systems in factories, underground mining operations, and commercial buildings.
Why Corrugation Matters in Elbow Ducts
The corrugated design is not just aesthetic – it offers real mechanical advantages.
1. Enhanced Strength and Flexibility
Corrugated elbows are inherently more resistant to mechanical stress. The rippled surface distributes strain more evenly, allowing the elbow to absorb pressure changes without deforming or cracking. This is particularly useful in dynamic environments where airflow pressure varies.
2. Vibration Resistance
HVAC systems and industrial air ducts often experience vibrations due to fan motors, air turbulence, or external factors. Corrugated elbows dampen these vibrations better than smooth-surfaced fittings, thus reducing noise and mechanical wear.
3. Improved Airflow Efficiency
While corrugation may introduce minimal turbulence, properly designed corrugated elbows guide airflow more predictably at sharp turns. Combined with optimized bending angles, this results in better overall efficiency in the duct system.

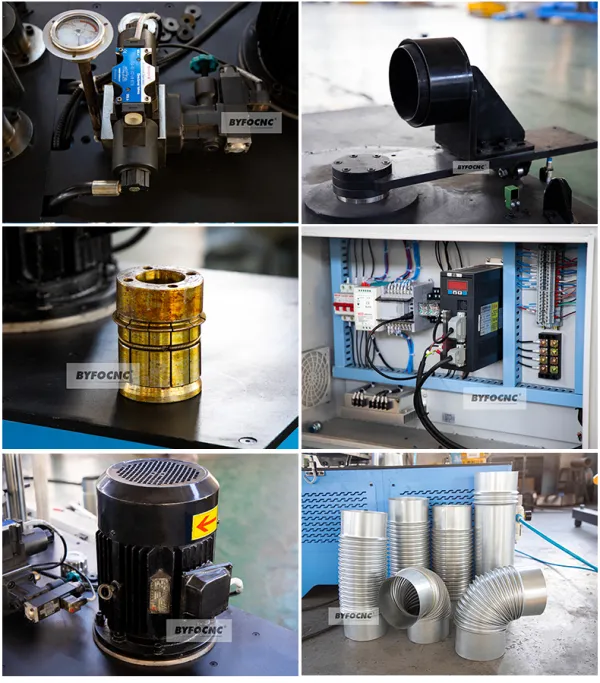

Core Components of the Corrugated Elbow Machine
Understanding the design and function of the corrugated elbow machine is vital to appreciate its engineering marvel. The device is primarily composed of the following subsystems:
1. Ripple Forming Equipment
This section of the machine handles the surface profiling of the round pipe. Using a combination of rollers, dies, and hydraulic or pneumatic force, the machine imprints evenly spaced corrugations onto the metal pipe.
Key features:
- Adjustable Roller Settings: To accommodate various pipe diameters and corrugation depths.
- Material Compatibility: Can process stainless steel, galvanized sheet, aluminum, and other duct-grade metals.
- High-speed Operation: Ensures productivity in mass production scenarios.
2. Bending Mechanism
Once the ripple forming is complete, the pipe section moves to the bending unit. Here, mechanical or hydraulic arms precisely apply force to bend the pipe into the desired elbow shape – usually 45°, 60°, or 90°.
Key features:
- Precision Angle Adjustment: Guarantees consistent bend radius across all units.
- Programmable Settings: For custom applications and batch processing.
- Safety Sensors: Prevent deformation and ensure safe operation.
3. Control Panel
Most modern corrugated elbow machines are fitted with a digital control system that allows operators to manage temperature, pressure, speed, angle, and material feed rate with high precision.
Features include:
- Touchscreen Interface
- Preset Programming
- Real-time Monitoring and Error Alerts
Applications Across Industries
The corrugated elbow machine’s utility extends far beyond conventional HVAC applications. Its versatile design and manufacturing capability make it useful across various industries:
1. HVAC Ductwork Manufacturing
As mentioned, this is the primary application. The machine supports rapid production of duct elbows for residential, commercial, and industrial HVAC systems.
2. Mining Ventilation Systems
Underground mines require rugged and flexible ductwork to ventilate deep shafts. Corrugated elbows created with this machine are ideal due to their durability and resistance to high-pressure airflows.
3. Shipbuilding and Marine Engineering
Marine HVAC systems must withstand vibration and corrosive environments. Corrugated fittings offer the needed resilience and flexibility in such settings.
4. Tunnel and Subway Infrastructure
Elbow ducts are often used to circulate fresh air in tunnels and subway systems. The corrugated variety ensures stability and long life under constant airflow.
5. Industrial Exhaust Systems
Manufacturing plants and chemical factories require elbow ducts for directing exhaust. Corrugated elbows help in safely managing the flow of heated or hazardous gases.
Advantages of Investing in a Corrugated Elbow Machine
Choosing the right manufacturing equipment is crucial for long-term success and profitability. Here’s why the corrugated elbow machine stands out:
1. Cost-Efficiency
Automated corrugation and bending reduce manual labor and speed up production, resulting in lower per-unit costs and higher profit margins.
2. High Production Capacity
Most machines are capable of producing hundreds of elbows per day, depending on size and material. This makes them ideal for large-scale duct manufacturing businesses.
3. Consistent Quality
Automated forming and bending minimize human error. The result is a uniform product line that meets industry standards for pressure resistance and fit.
4. Versatility
Adjustable dies and rollers allow you to work with a wide range of materials and pipe sizes – from small residential ducts to large industrial air channels.
5. Low Maintenance Requirements
Designed for industrial use, these machines feature durable components that require minimal maintenance, reducing downtime and operational costs.
How to Choose the Right Corrugated Elbow Machine
Before investing in a corrugated elbow machine, consider the following factors:
1. Pipe Diameter Range
Ensure the machine supports the diameters your projects typically require – common ranges are from 80mm to 1000mm.
2. Corrugation Depth and Spacing
Machines with adjustable ripple settings give you greater flexibility in meeting client specifications.
3. Bend Angle Precision
Look for machines with programmable bending angles and precise control systems to ensure product consistency.
4. Material Compatibility
Verify the machine can process your preferred materials – whether it’s galvanized steel, stainless steel, or aluminum.
5. Automation and Control Interface
Touchscreen control panels and programmable logic controllers (PLCs) streamline operation and reduce setup time.
Real-World Success Stories
Case Study 1: HVAC Manufacturer in Southeast Asia
A leading ductwork manufacturer in Vietnam upgraded their manual elbow forming system with a high-speed corrugated elbow machine. Within two months, they reported:
- A 40% increase in production output
- 30% reduction in labor cost
- Drastic improvement in product consistency and client satisfaction
Case Study 2: Mining Ventilation Supplier in Chile
A mining equipment supplier needed more durable elbows for underground air systems. After switching to corrugated elbows produced by this machine, failure rates dropped by 70%, reducing maintenance downtime and boosting safety.
Future of Duct Fabrication: Automation and Smart Manufacturing
The adoption of machines like the corrugated elbow machine signifies a broader trend in smart manufacturing. With Industry 4.0 reshaping the industrial landscape, duct fabrication shops are increasingly integrating:
- AI-based defect detection
- Cloud-based production monitoring
- Predictive maintenance alerts
- Remote operation and diagnostics
Corrugated elbow machines with advanced software integration are at the forefront of this transformation, helping manufacturers improve quality, efficiency, and agility in a competitive marketplace.
Invest in Precision, Power, and Profitability
The Corrugated Elbow Machine is more than a tool—it’s a transformative investment in the future of ductwork production. Whether you’re building air ducts for a skyscraper, ventilating an underground tunnel, or manufacturing systems for global distribution, this machine empowers your business with unmatched reliability, efficiency, and product quality.
With ripple-forming capabilities combined with precision bending technology, the corrugated elbow machine is the ideal solution for any manufacturer looking to scale up production while ensuring the highest standards of performance.
