What is a Spiral Duct Making Machine?

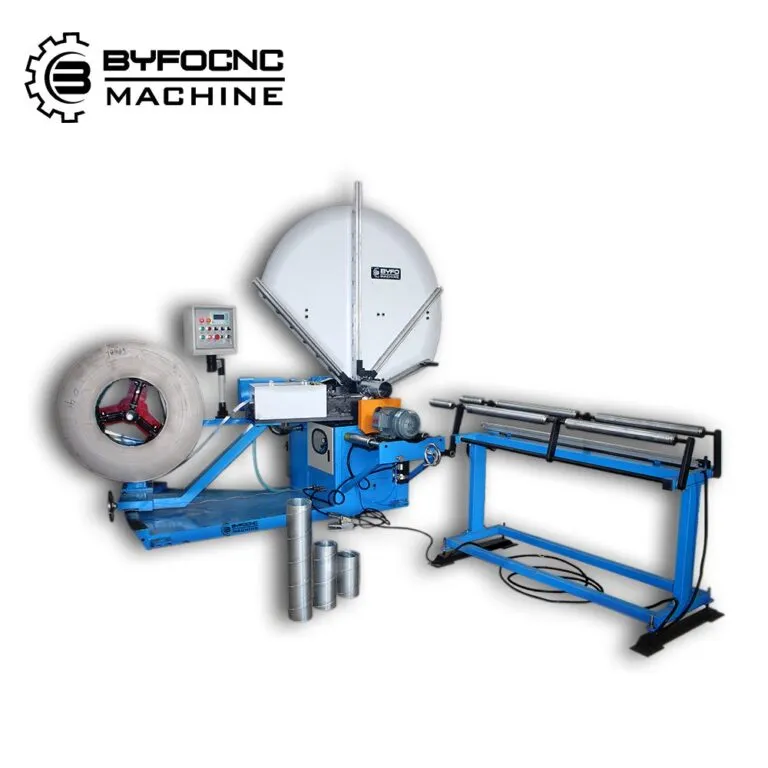

Spiral Duct Making Machine is a professional equipment specially used for producing spiral ducts. It precisely processes metal strips (such as galvanized steel plates, stainless steel plates, aluminum plates, etc.) into spiral shapes and fixes them into pipes through the coordinated operation of a series of mechanical parts.
Spiral ducts are widely used in modern industry and construction, especially in heating, ventilation, and air conditioning (HVAC) systems. In commercial buildings such as large shopping malls, office buildings, and hotels, as well as industrial and public facilities such as factories and hospitals, HVAC systems require a large number of ducts to achieve air transportation and circulation. Spiral ducts have become an ideal choice with their advantages. In some places with high ventilation requirements, such as underground parking lots and subway tunnels, spiral ducts are also widely used to ensure the effective circulation and quality of air.
The working principle is revealed
The working principle of the Spiral Duct Making Machine is based on the plastic deformation and mechanical processing principles of metal materials. Its core is to gradually process metal strips into spiral ducts.

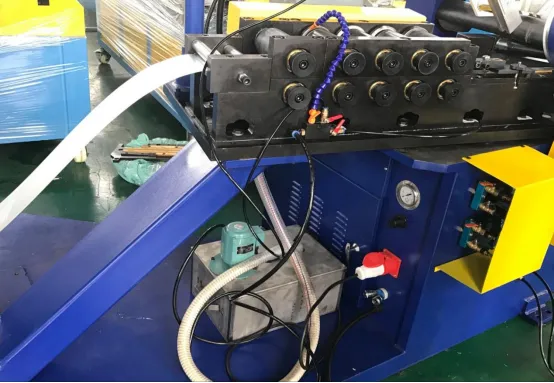

When the equipment is started, the rolled metal strip is first placed on the unwinding rack, the strip is unrolled through the unwinding device, and introduced into the feed port of the main machine. During the feeding process, the metal strip will pass through a series of guiding and leveling devices to ensure that the strip can enter the subsequent processing link flatly and accurately. This step is crucial, just like building a high-rise building requires a solid foundation. If the strip is not flat, the subsequently processed air duct will have problems such as size deviation and irregular shape.
After entering the main machine, the metal strip begins to plastically deform under the action of the spiral blade or roller. The spiral blade or roller continuously applies pressure and torsion to the strip according to the pre-set pitch and angle, so that the strip gradually bends and winds along the spiral trajectory to form a spiral tube blank. This process is like a skilled craftsman who carefully winds the soft metal wire into a beautiful spiral shape, and every action is full of the perfect combination of strength and skill. Taking the common galvanized steel spiral duct manufacturing as an example, under the action of the spiral blades, the galvanized steel plate is precisely processed into a spiral shape that meets the requirements, and its accuracy can reach the millimeter level.
As the tube blank is continuously formed, its edges need to be connected and fixed to ensure the structural strength and sealing of the duct. Common connection methods are welding and mechanical fastening. The welding method melts and fuses the edges of the tube blank at high temperature to form a strong weld. This method has high connection strength and good sealing and is suitable for occasions with high requirements for duct sealing, such as high-pressure ducts in ventilation and air-conditioning systems. Mechanical fastening uses special connectors, such as locks, rivets, etc., to connect the edges of the tube blank. This method is easy to install and flexible to disassemble and is often used in duct systems that require frequent disassembly and maintenance. For example, in some temporary ventilation projects, spiral ducts using mechanical fastening methods can be quickly installed and disassembled, greatly improving engineering efficiency.
How much do you know about the application field?
The application field of Spiral Duct Making MaMachiness is extremely wide, and it plays an important role in many industries.
In the HVAC industry, it is an indispensable equipment. Take large commercial complexes, such as the Shanghai World Financial Center, for example. Its HVAC system is large in scale and requires a large number of high-quality ducts to ensure the uniform distribution and effective regulation of air throughout the building. The spiral ducts produced by Spiral Duct Making Machine perfectly meet this demand with their efficient air delivery capacity, good sealing, and low wind resistance. In this building, the spiral ducts continuously deliver the treated fresh air to various office areas, shopping malls, restaurants, and other places, while exhausting the dirty air in the room, providing a comfortable and healthy indoor environment for thousands of staff and customers.
In the mining field, spiral ducts also have important applications. In the mining operations of some metal mines, underground ventilation is crucial, which is related to the life safety of miners and the smooth progress of mining operations. Take a large coal mine in Shanxi as an example. To ensure that each working surface underground has sufficient fresh air and exhausts the harmful gases and dust generated during the mining process, a large number of spiral ducts produced by Spiral Duct Machines are used. These ducts are laid along the tunnels, bringing fresh air from the ground deep underground, creating a relatively safe working environment for miners and effectively reducing the risk of safety accidents caused by poor ventilation.
The construction field is also an important application scenario for Spiral Duct Machines. In the construction of modern high-rise buildings, such as the China Zun in Beijing, a large number of spiral ducts are used during the construction process to meet the complex ventilation and air-conditioning needs inside the building. These ducts must not only be reasonably laid out in a limited space but also withstand certain pressure and vibration. The spiral ducts produced by Spiral Duct Making Machine ensure the reliable operation of the ventilation system during the long-term use of the building with their sturdy structure and stable performance, providing a strong guarantee for the normal use of the building.
Advantages and highlights
Spiral duct-making machines have shown many advantages that are difficult to match with traditional methods in the field of duct manufacturing.
From the perspective of airflow efficiency, the inner wall of the spiral duct it produces is smooth and the wind resistance coefficient is extremely low. Relevant research data shows that compared with traditional rectangular ducts, the wind resistance of spiral ducts can be reduced by about 30%. This means that under the same ventilation demand, the use of spiral ducts can achieve the same air volume with a smaller fan power, greatly improving the airflow delivery efficiency. Taking the ventilation system of a large factory as an example, after adopting spiral ducts, the fan operation electricity cost can be saved by tens of thousands of yuan each year.
In terms of noise control, the spiral ducts manufactured by Spiral Duct Making Machine have excellent performance. Because its spiral structure can effectively disperse and absorb the vibration energy generated by the airflow, the noise of the duct during operation is reduced. According to actual tests, under the same wind speed conditions, the noise generated by the spiral duct is 5-10 decibels lower than that of the traditional duct. This advantage makes spiral ducts widely used in places with high noise requirements, such as hospitals, schools, office buildings, etc., creating a quieter and more comfortable environment for people.
Energy efficiency is also a highlight of the spiral duct-making machine. Due to its low wind resistance and efficient airflow delivery capacity, it can reduce the energy consumption of the fan when the ventilation system is running. For example, in the HVAC systems of some large shopping malls, after the use of spiral ducts, the energy consumption of the fans has been reduced by 15% – 20%, which not only reduces the operating costs but also conforms to the concept of energy conservation and emission reduction advocated by today’s society.
In terms of cost control, the Spiral Duct Making Machine also has obvious advantages. On the one hand, its production process has a high degree of automation and greatly improves production efficiency. Compared with traditional manual or semi-manual duct making, it can greatly shorten the production cycle and reduce labor costs. For example, an advanced spiral duct-making machine can produce tens of meters of duct per hour, while traditional manual production takes several hours to complete the same length of duct production. On the other hand, the connection method of spiral ducts is relatively simple and easy to install, which can reduce the time and labor costs during the installation process. Moreover, due to the long service life and low maintenance cost of spiral ducts, it can save users a lot of money in the long run.
Selection and Use Guide
When choosing a Spiral Duct Making Machine, you need to consider many factors comprehensively. Production capacity is the primary consideration. You should estimate the production quantity and specifications of the ducts based on your own business needs. For example, large ventilation engineering contractors may need to produce thousands of square meters of spiral ducts every month. They should choose equipment with high production efficiency and can meet the needs of large-scale production. If the business volume is small, small and flexible equipment can be selected to avoid waste of resources.
Equipment quality is crucial and is directly related to the stability of production and the quality of ducts. It can be evaluated from the aspects of equipment manufacturing materials, processing technology, and performance parameters. The manufacturing materials should be made of high-strength, corrosion-resistant high-quality steel to ensure that the equipment is not easily damaged during long-term use. Precision processing technology can ensure the accuracy and fit of parts and reduce the occurrence of equipment failures. Advanced equipment usually has a high-precision control system, which can realize precise control of the duct production process and ensure the dimensional accuracy and quality stability of the duct. Some well-known brands of spiral duct manufacturing machines use advanced CNC technology, and the dimensional error of the ducts they produce can be controlled within a very small range.
Price is also a factor that cannot be ignored. It is necessary to choose cost-effective equipment within the budget. But be careful not to choose equipment with poor quality just because of the low price, otherwise, it may bring high maintenance costs and production losses in later use. You can refer to the quotations of different manufacturers, compare the performance and configuration of the equipment, and consider the after-sales service of the equipment, such as maintenance response time, spare parts supply, etc.
When using the Spiral Duct Making Machine, the maintenance points cannot be ignored. Clean the equipment regularly, remove dust and debris on the surface and inside of the equipment, and prevent them from entering the inside of the equipment and affecting normal operation. For example, perform a comprehensive cleaning at least once a week, wipe the surface of the equipment with a clean cloth, and blow away the dust inside with compressed air.
The lubrication system of the equipment should be regularly inspected and maintained. According to the requirements of the equipment manual, lubricating oil should be regularly added or replaced to ensure good lubrication of the moving parts of the equipment and reduce wear. Generally speaking, the amount and quality of the lubricating oil should be checked once every certain period of operation (such as 500 hours).
Frequently check whether the connections of the various parts of the equipment are loose. If screws, nuts, etc. are found to be loose, they should be tightened in time. At the same time, regularly check the tension of the transmission parts of the equipment, such as chains, belts, etc., to ensure their normal operation. For example, conduct a comprehensive tightening inspection of the equipment every month to find and solve problems in time.
During the operation, the operating procedures must be strictly followed to avoid equipment damage or safety accidents caused by illegal operations. Operators should be professionally trained and familiar with the equipment’s operating procedures and precautions. Before the equipment is operated, check whether the various parameters of the equipment are normal to ensure that the equipment is in good operating condition. During the production process, pay close attention to the operation of the equipment. If abnormal sounds, vibrations, or excessive temperatures are found, the equipment should be stopped immediately for inspection and production can be continued after the faults are eliminated.
